SWITCHING DIODES
FEATURES
? Fast switching Speed.
? Electrically ldentical to Standerd JEDEC
? High Conductance
? Axial lead Package ldeally Suited for Automatic lnsertion.
? Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA
VOLTAGE
100 Volt
POWER
500 mWatt
?
? Terminals: Solderable per MIL-STD-750, Method 2026 ? Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" Reel
T/B - 5K per horiz. tape & Ammo box
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA =25°C unless otherwise noted)

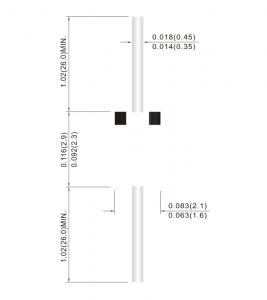

Case: Molded Glass DO-34
|
PARAMETER |
SYMBOL |
VALUE |
UNITS |
|
Peak Reverse Voltage |
VRM |
100 |
V |
|
Surge Forward Current at t < 1s and TJ= =25 OC |
IFSM |
500 |
mA |
|
Power Dissipation at TA= 25 OC |
PTOT |
500 |
mW |
|
Forward continuous current |
IF |
300 |
mA |
|
Maximum Forward Voltage at IF =10mA |
VF |
1 |
V |
|

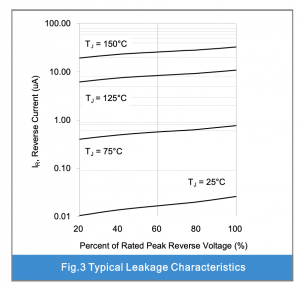

Maximum Leakage Current at VR=20V |
IR |
25 5 50 |
nA ?A ?A |
|

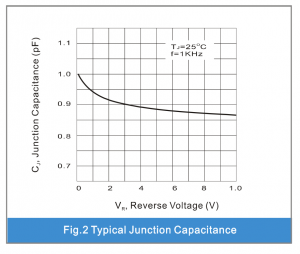

Maximum Capacitance at VF =VR=0 |
CJ |
4 |
pF |
|
Maximum Reverse Recovery Time From |
trr |
4 |
ns |
|
Typical Thermal Resistance |
R?JA |
300 |
OC / W |
|
Junction Temperature and Storage Temperature Range |
TJ,TS |
-65 to +175 |
OC |
NOTE:
1. CJ at VR=0, f=1MHZ
