FAST SWITCHING SURFACE MOUNT DIODES
POWER
FEATURES
? Fast switching Speed.
? Surface Mount Package Ideally Suited For Automatic Insertion. ? Silicon Epitaxal Planar Construction.
? Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

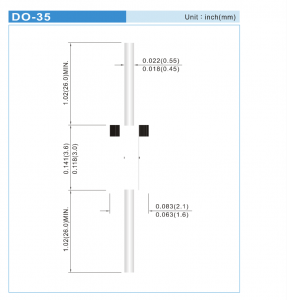

Case : Molded Glass DO-35
Terminals : Solderable per MIL-STD-750, Method 2026
Approx. Weight : 0.13 grams
Ordering information : Suffix : “ -35 ” to order DO-35 Package Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" plastic Reel
T/B - 5K per horiz. tape & Ammo box
