SILICON ZENER DIODE
FEATURES
? Low inductance
? High temperature soldering : 260°C /10 seconds at terminals
? Glass package has Underwriters Laboratory Flammability Classification ? Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

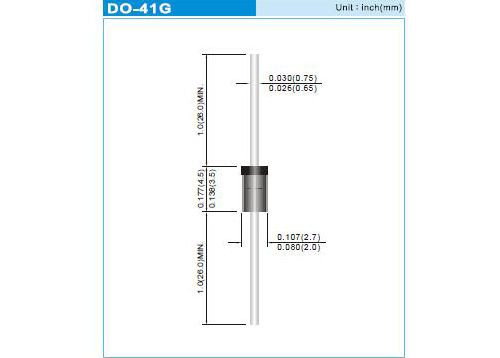

? Case:MoldedGlassDO-41G
? Terminals: Axial leads, solderable per MIL-STD-750, Method 2026
1N4728A-G 3.3
1N4729A-G 3.6
1N4730A-G 3.9
1N4731A-G 4.3
1N4732A-G 4.7
1N4733A-G 5.1
1N4734A-G 5.6
1N4735A-G 6.2
1N4736A-G 6.8
1N4737A-G 7.5
1N4738A-G 8.2
1N4739A-G 9.1
1N4740A-G 10
1N4741A-G 11
1N4742A-G 12
1N4743A-G 13
1N4744A-G 15
1N4745A-G 16
1N4746A-G 18
1N4747A-G 20
1N4748A-G 22
1N4749A-G 24
1N4750A-G 27
1N4751A-G 30
1N4752A-G 33
1N4753A-G 36
1N4754A-G 39
1N4755A-G 43
1N4756A-G 47
1N4757A-G 51
1N4758A-G 56
1N4759A-G 62
1N4760A-G 68
1N4761A-G 75
