SWITCHING DIODES
FEATURES
? High speed switching .
? Electrically ldentical to Standerd JEDEC
? High Conductance
? Axial lead Package ldeally Suited for Automatic lnsertion.
MECHANICAL DATA
? Case: Molded Glass DO-34
? Terminals: Solderable per MIL-STD-750, Method 2026 ? Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" Reel
T/B - 5K per horiz. tape & Ammo box
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ =25°C unless otherwise noted)
|

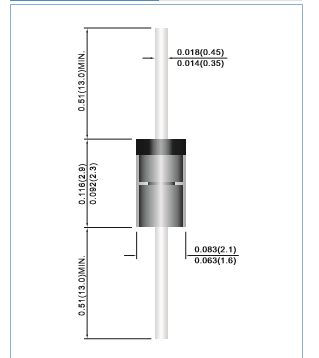

DO-34 |
Unit:inch( mm) |
VOLTAGE
250 Volts
POWER
300 mWatts
|
PARAMETER |
SYMBOL |
1SS244 |
UNITS |
|
Reverse Voltage |
VR |
220 |
V |
|
Peak Reverse Voltage |
VRM |
250 |
V |
|
RMS Voltage |
VRMS |
250 |
V |
|
Maximum Average Forward Current at Ta=25OC And f > 50Hz |
IAV |
200 |
mA |
|
Surge Forward Current at t < 1s and Tj=25 OC |
I FSM |
625 |
mA |
|
PowerDissipationatTamb=25 OC |
PTOT |
300 |
mW |
|

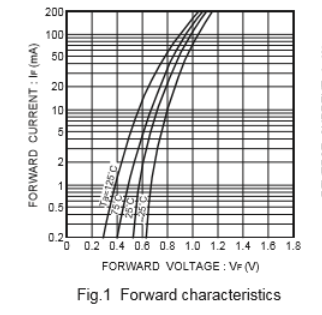

Maximum Forward Voltage at IF =200mA |
VF |
1.5 |
V |
|

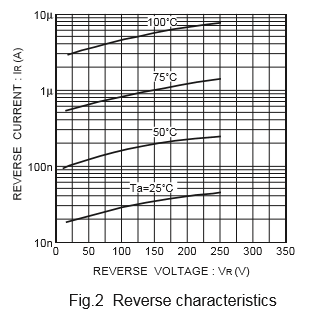

Maximum Leakage Current at VR = 220 V |
IR |
10 |
uA |
|
Maximum Capacitance (Note 1) |
CJ |
3 |
pF |
|
Maximum Reverse Recovery Time (Note 2) |
TRR |
75 |
ns |
|
Maximum Thermal Resistance |
R. JA |
350 |
OC / W |
|
Junction Temperature and Storage Temperature Range |
TJ,TS |
-65 to +175 |
OC |
NOTE:
1. CJ at VR=0V, f=1MHZ
2. From IF=20mA to IR=20mA, RL=50.
