SMALL SIGNAL SCHOTTKY BARRIES SWITCHING DIODES
|

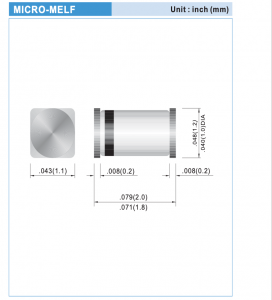

MICRO-MELF |
Unit : inch (mm) |
|
.048(1.2) .040(1.0)DIA .043(1.1) .008(0.2) .008(0.2) .079(2.0) .071(1.8) |
|
VOLTAGE
40 Volts
CURRENT
0.15 Amperes
? ? ? ? ?
? ? ? ?
FEATURES
Low capacitance
Low leakage current
Low forward voltage drop
Very low switching time IncompliancewithEURoHS2002/95/ECdirectives
MECHANICAL DATA
Case: Molded Glass MICRO-MELF
Terminals: Solderable per MIL-STD-750, Method 2026 Polarity: See Diagram Below
Mounting Position: Any
T/R - 10K per 13" plastic Reel T/R - 3K per 7" plastic Reel
