SCHOTTKY BARRIES SWITCHING DIODES
FEATURES
? Low Forward Voltage Drop
? Guard Ring Construction for Transient Protection
? Low Reverse Recovery Time
? Low Reverse Capacitance
? Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

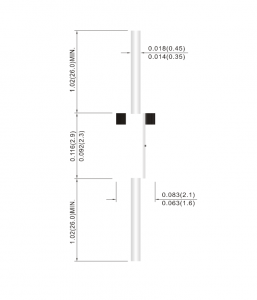

? Case: Molded Glass DO-34
? Terminals: Solderable per MIL-STD-750, Method 2026 ? Polarity: Color band denotes cathode end
? Ordering informatio
B/P - 2K per Bulk box
T/R - 10K per 15" Reel
T/B - 5K per horiz. tape & Ammo box
