SWITCHING DIODES
FEATURES
? Fast switching Speed
? ElectricallyldenticaltoStanderdJEDEC
? High Conductance
? Axial lead Package ldeally Suited for Automatic lnsertion
? Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA

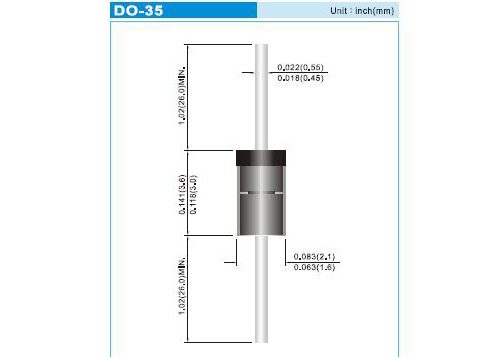

? Case: Molded Glass DO-35
? Terminals: Solderable per MIL-STD-750, Method 2026 ? Packing information
B/P - 2K per Bulk box
T/R - 10K per 15" Reel
T/B - 5K per horiz. tape & Ammo box
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ =25°C unless otherwise noted)
|
VOLTAGE |
120 to 250 Volt |
POWER |
500 mWatt |
|
PARAMETER |
SYMBOL |
BAV19 |
BAV20 |
BAV21 |
UNITS |
|
Reverse Voltage |
VR |
100 |
150 |
200 |
V |
|
Peak Reverse Voltage |
VRM |
120 |
200 |
250 |
V |
|
Rectified Current (Average), Half Wave Rectification with Resistive Load andf>=50Hz |
IF(AV) |
200 |
mA |
||
|
Peak Forward Surge Current,1s |
IFSM |
1.0 |
A |
||
|
Power Dissipation Derate Above 25OC |
Ptot |
500 |
mW |
||
|
Maximum Forward Voltage at 0.1A |
VF |
1.0 |
V |
||
|
Maximum DC Reverse Current at Rated DC Blocking Voltage T =25OC J |
IR |
0.1 |
?A |
||
|
Typical Junction Capacitance (Notes1) |
CJ |
3 |
pF |
||
|
Maximum Reverse Recovery (Notes2) |
trr |
50 |
ns |
||
|
Typical Thermal Resistance |
R?JA |
350 |
OC / W |
||
|
Operating Junction and Storage Temperature Range |
TJ, TSTG |
-55 to +150 |
OC |
||

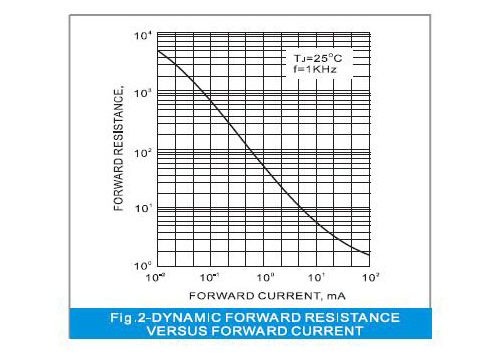

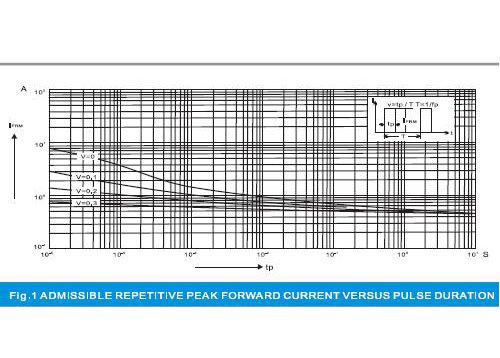

NOTE:
1. CJ at VR=0, f=1MHZ
2. From IF=30mA to IR=-3mA, VR=6Volts, RL=100?
