BIDIRECTIONAL DIODE THYRISTOR
FEATURES
? Low breakover current.
? Trigger diode with a fixed voltage reference.
? In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA

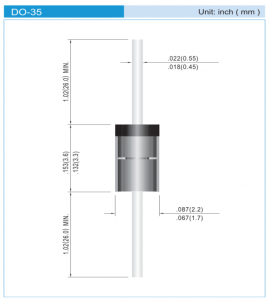

- Case: Molded Glass DO-35
- Terminals: Solderable per MIL-STD-750, Method 2026
- Polarity: See Diagram Below
- Approx. Weight: 0.13 grams
- Mounting Position: Any
- Packing information
B - 2K per Bulk box
T/R - 10K per 13" plastic Reel
T/B - 5K per horiz. tape & Ammo box

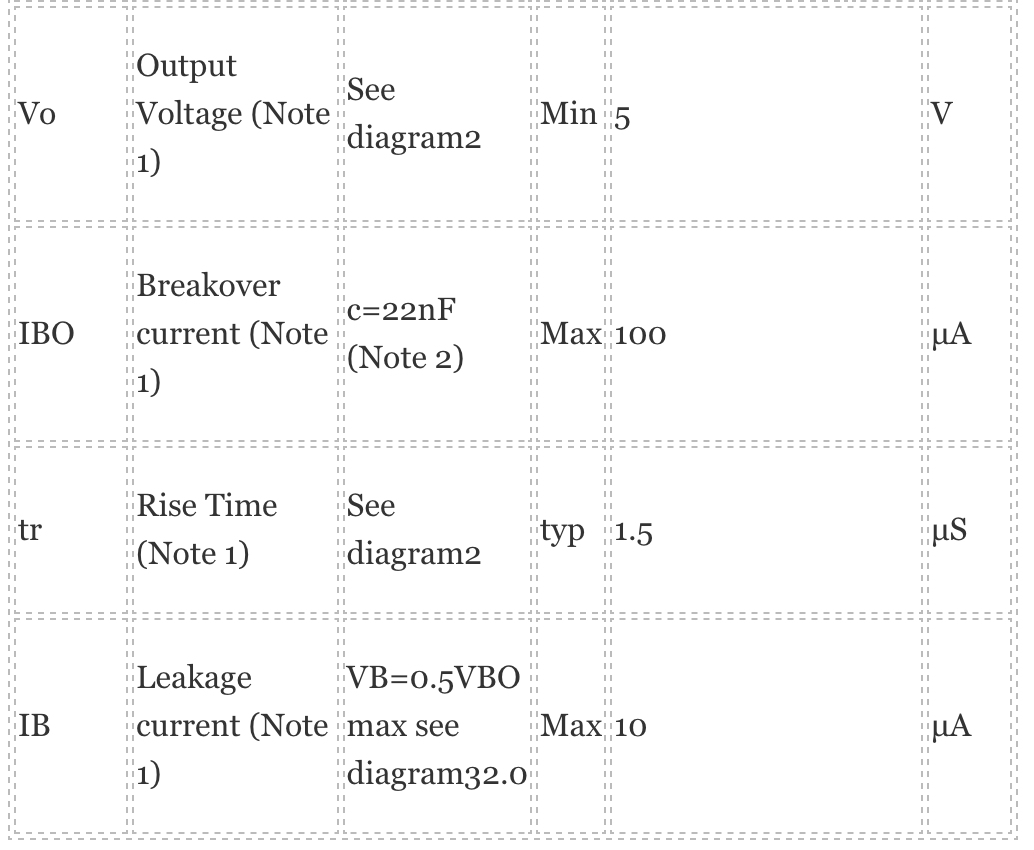

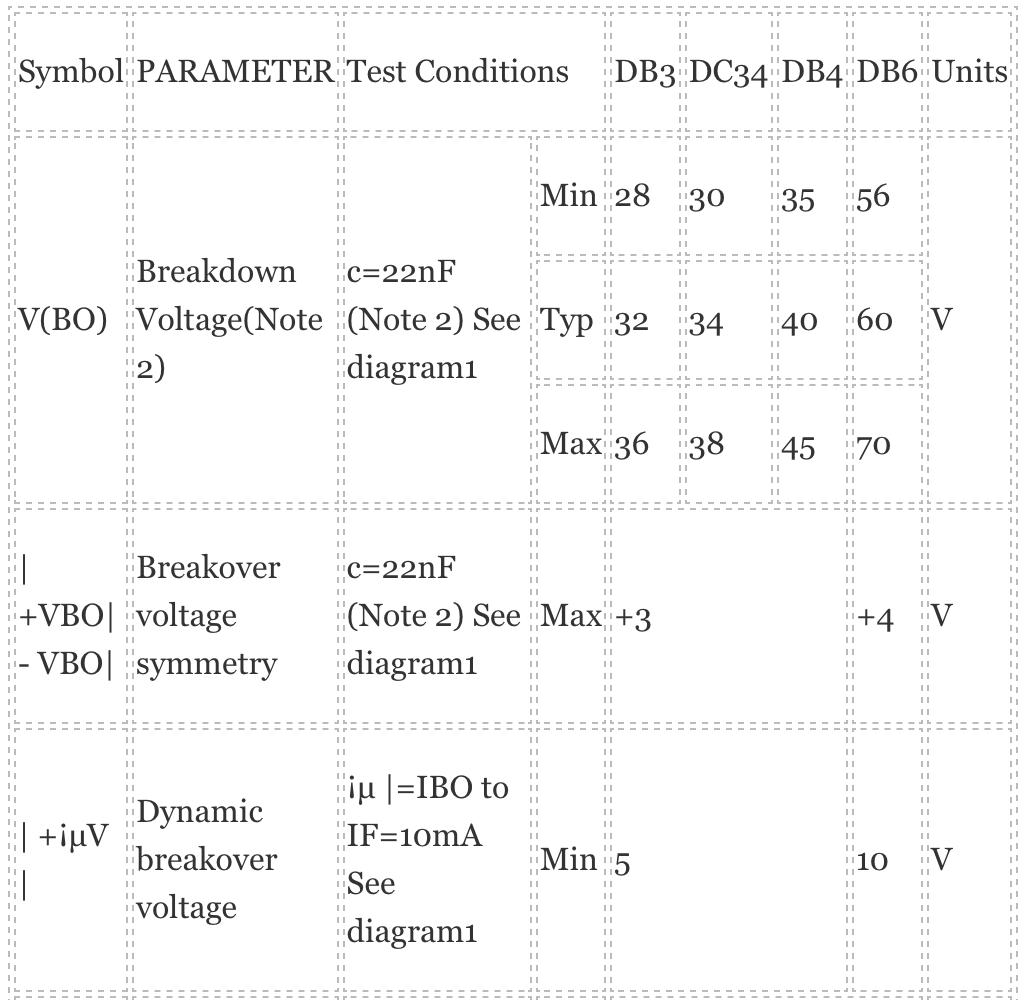

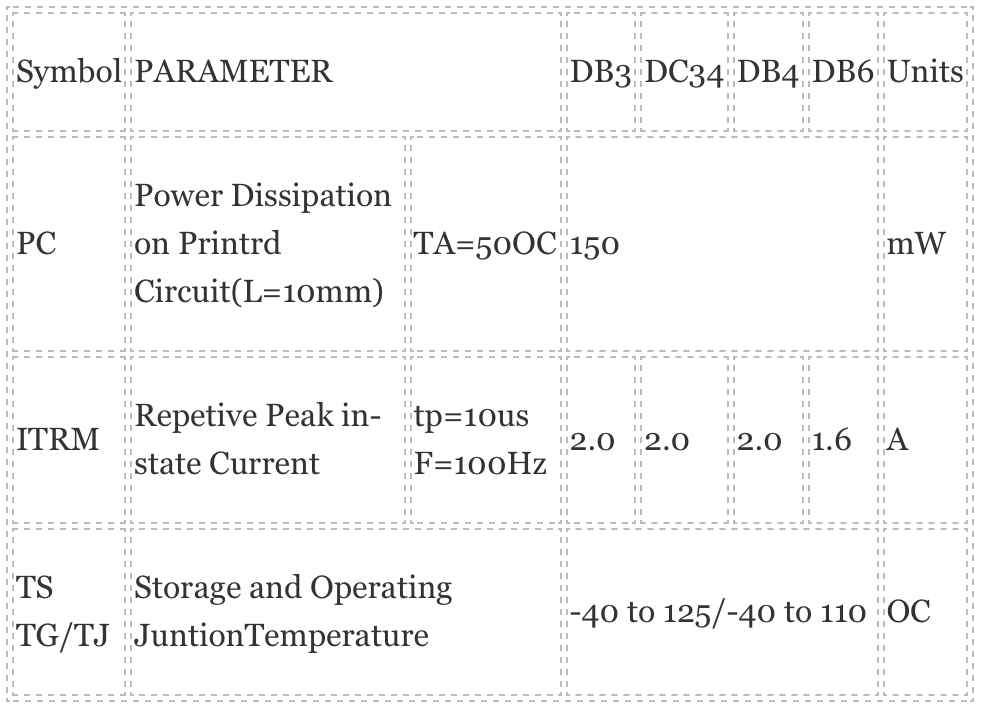

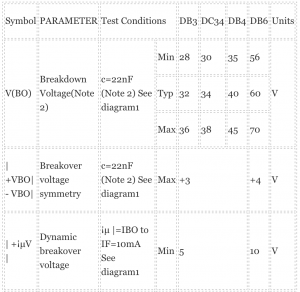

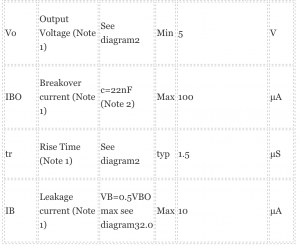

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ =25°C unless otherwise noted)
 |
 |
 |
NOTE1. GELECTRICAL CHARACTERISTIC APPLICABLE IN BOTH FORWARD AND REVERSE DIRECTIONS
NOTE2. GCONNECTED IN PARALLEL WITH DEVICESC
