SURFACE MOUNT ZENER DIODES
Include:
DL85C3V3,DL85C3V6,DL85C3V9,DL85C4V3,DL85C4V7,DL85C5V1,DL85C5V6,DL85C6V2,DL85C6V8,DL85C7V5
DL85C8V2,DL85C9V1,DL85C10,DL85C11,DL85C12,DL85C13,DL85C15,DL85C16,DL85C18,DL85C20,DL85C22
DL85C24,DL85C27,DL85C30,DL85C33,DL85C36,DL85C39,DL85C43,DL85C47,DL85C51,DL85C56,DL85C62
DL85C68,DL85C75
FEATURES
? Low inductance
? Lead free in comply with EU RoHS 2011/65/EU directives
MECHANICAL DATA

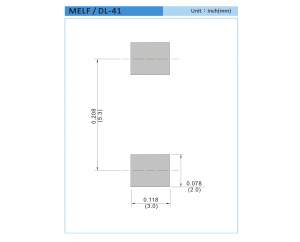

- Case: Molded Glass MELF / DL-41
- Terminals: Solderable per MIL-STD-750, Method 2026 ? Polarity: Color band denotes cathode end
|
0.114 |
|
VOLTAGE |
3.3 to 75 Volts |
POWER |
1.3 Watts |
Ratings at 25°C ambient temperature unless otherwise specified.
|
Parameter |
Symbol |
Value |
Units |
|
Power Dissipation at TA = 25OC |
PTOT |
1.3 |
W |
|
Operating Junction Temperature Range |
TJ |
-65 to +200 |
OC |
|
Storage Temperature Range |
TSTG |
-65 to +200 |
OC |
|
*Valid provided that leads at a distance of 10mm from case are kept at ambient temperature. |
|||
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
|
Thermal Resistance Junction to Ambient Air |
R?JA |
-- |
-- |
170* |
oC/W |
|
Forward Voltage at IF = 200mA |
VF |
-- |
-- |
1.2 |
V |
|
*Valid provided that leads at a distance of 10mm from case are kept at ambient temperature. |
|||||
