SURFACE MOUNT ZENER DIODES FEATURES
|

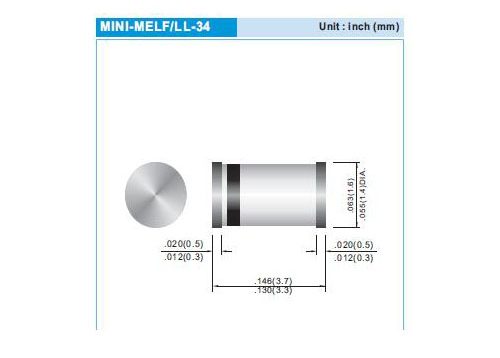

0.063(1.6) 0.055(1.4)DIA. 0.020(0.5) 0.012(0.3) 0.020(0.5) 0.012(0.3) 0.146(3.7) 0.130(3.3) |
VOLTAGE
2.0 to 56 Volt
POWER
500 mWatt
? ? ? ?
? ? ? ?
Planar Die construction

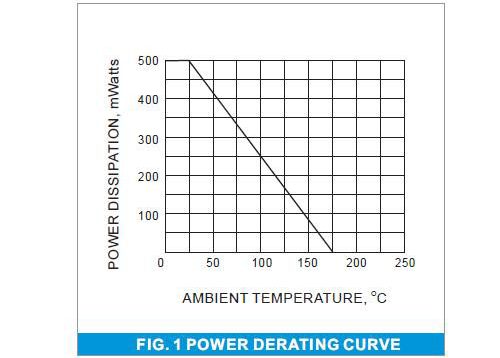

500mW Power Dissipation
Ideally Suited for Automated Assembly Processes
Lead free in compliance with EU RoHS 2011/65/EU directive
MECHANICAL DATA
Case: Molded Glass MINI-MELF
Terminals: Solderable per MIL-STD-750, Method 2026 Mounting Position: Any
Polarity : Color band denotes cathode end
