FEATURES
? For surface mounted applications in order to optimize board space ? Easy pick and place
? Plastic package has Underwriters Laboratory Flammability
Classification 94V-O
? Low Forward Drop
? High temperature soldering : 260°C /10 seconds at terminals ? Glass Passivated Junction
? Lead free in compliance with EU RoHS 2011/65/EU directive
? Green molding compound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA

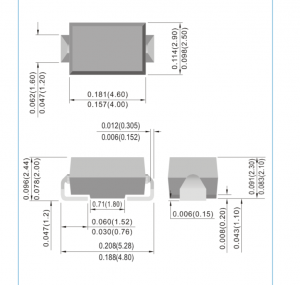

? Case: SMA(W) molded plastic
? Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 ? Polarity: Indicated by cathode band
? Standard packaging: 12 mm tape (EIA-481)
? Weight: 0.002 ounces, 0.068 grams
