SWITCHING DIODES
|

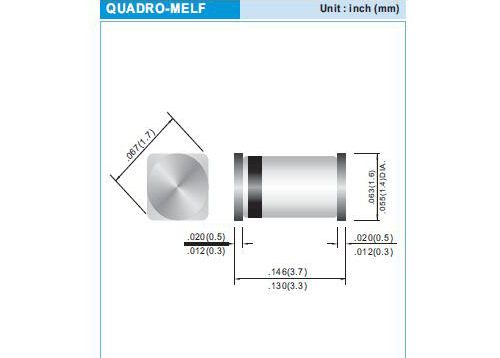

QUADRO-MELF |
Unit : inch (mm) |
|
.067(1.7) .063(1.6) .055(1.4)DIA. .020(0.5) .012(0.3) .020(0.5) .012(0.3) .146(3.7) .130(3.3) |
|
VOLTAGE
100 Volts
POWER
500 mWatts
?
?
?
?
FEATURES
? Fast switching Speed.
? Electrically ldentical to Standerd JEDEC
? High Conductance
? Axial lead Package ldeally Suited for Automatic lnsertion. ? In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA
Case: Molded GlassQUADRD MELF
Terminals: Solderable per MIL-STD-750, Method 2026
Polarity: See Diagram Below
Mounting Position: Any
