SWITCHING DIODES
|

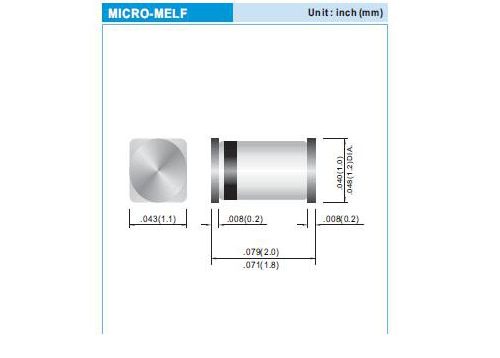

MICRO-MELF |
Unit : inch (mm) |
|
.040(1.0) .048(1.2)DIA. .043(1.1) .008(0.2) .008(0.2) .079(2.0) .071(1.8) |
|
VOLTAGE
100 Volts
POWER
500 mWatts
FEATURES
? Fast switching Speed.
? Electrically ldentical to Standerd JEDEC
? High Conductance
? Axial lead Package ldeally Suited for Automatic lnsertion. ? In compliance with EU RoHS 2002/95/EC directives
MECHANICAL DATA
Case: Molded Glass MICRO MELF
Terminals: Solderable per MIL-STD-750, Method 2026
Polarity: See Diagram Below
Mounting Position: Any
