FEATURES
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O
- For surface mounted applications in order to optimize board space
- Built-in strain relief
- Metal to silicon rectifier. majority carrier conduction
- Low power loss, high efficiency
- High surge capacity

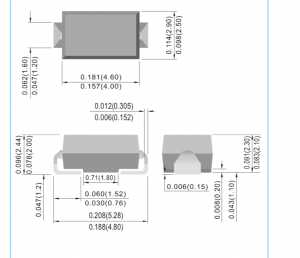

? Lead free in comply with EU RoHS 2011/65/EU directives ? Green molding compound as per IEC61249 Std. . (Halogen Free)MECHANICAL DATA? Case: SMA(W) molded plastic
? Terminals: Solder plated, solderable per MIL-STD-750,Method 2026 ? Polarity: Color band denotes cathode end
? Standard packaging: 12mm tape (EIA-481)
? Weight: 0.002 ounce, 0.067 gram
